        SAP2904
        DUAL OPERATIONAL AMPLIFIERS

        The SAP2904 devices which include two high-voltage op amps. These devices provide outstanding value for cost sensitive applications, with features including low offset, common-mode input range to ground, and high differential input voltage capability.

        The SAP2904 op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage, and lower quiescent current. High ESD and integrated EMI and RF filters enable the devices to be used in the most rugged, environmentally challenging applications.


        Main feature

        Wide Single−Supply Range: 3V~32V

        Low Supply-Current Drain, 0.7mA Typ

        Common-mode input voltage range includes ground

        Low Input Bias and Offset Parameters

        Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage 32V

        Open-Loop Differential Voltage Amplification: 100V/mV

        Internal Frequency Compensation

        ESD rating (HBM): ±2kV

        ESD rating (CDM): ±1kV


        Ordering Information
        Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
        SAP2904SA SOP-8-225-1.27 SAP2904 Halogen free Tube
        SAP2904SATR SOP-8-225-1.27 SAP2904 Halogen free Tape&Reel

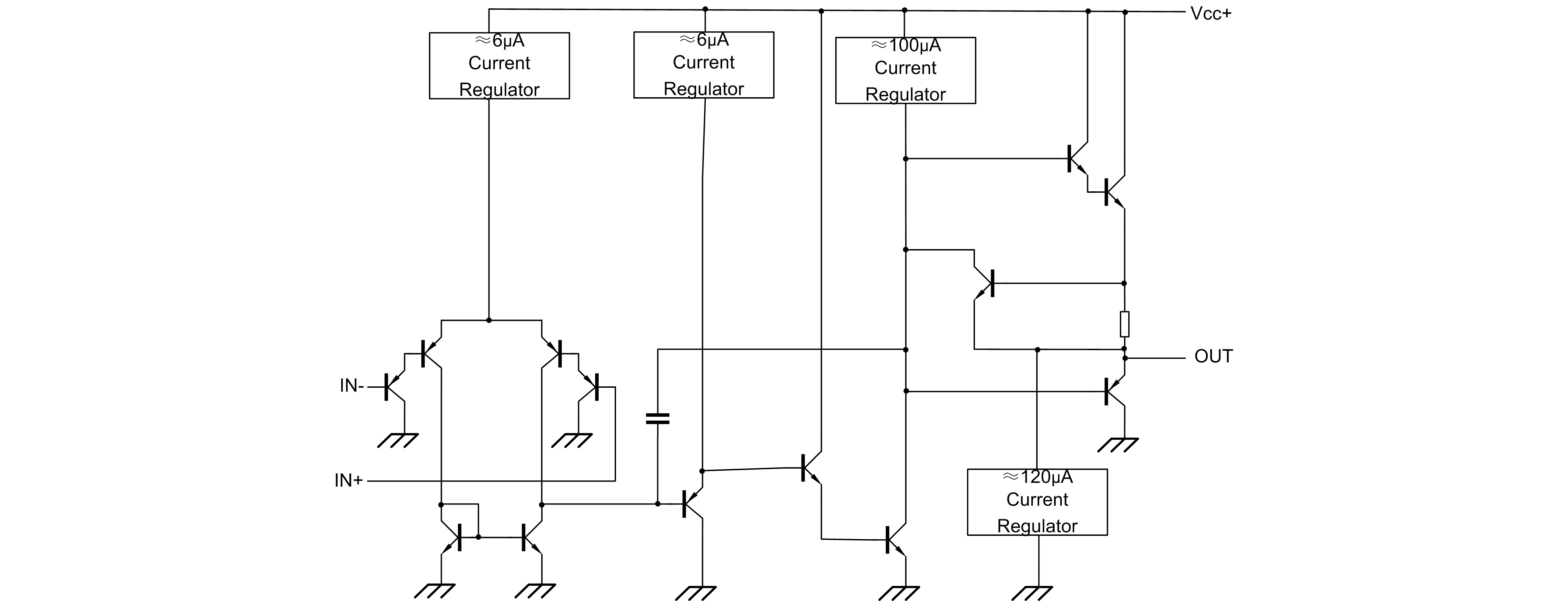

        Block Diagram


        Documents
        title Types of Size (KB) date Download the latest English version
        SAP2904 0 1970-01-01 SAP2904 Datasheet
