    SA317
    THREE-TERMINAL ADJUSTABLE OUTPUT POSITIVE VOLTAGE REGULATOR

    SA317 is an adjustable three-terminal positive voltage regulator, providing a maximum current exceeding 1.5A when the output voltage range is 1.25V to 37V. This voltage regulator is exceptionally easy to use, and only two external resistors are needed to set the output voltage. In addition, internal current limiting, thermal shutdown and safe working area compensation are used to basically prevent the fuse from blowing.

    Main feature

    • Output adjustable voltage low to 1.25V

    • Maximum output current: 1.5A (TO-220-3L, TO-263-3L)

    • Maximum output current: 0.5A (SOT-223-3L)

    • Internal short circuit protection

    • Over current/over thermal protection

    • Transistor safe working area protection

    • Standard three-terminal transistor package


    Ordering Information
    Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

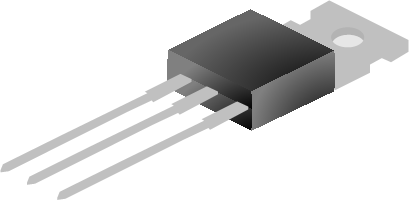

    SA317T TO-220-3L SA317T Halogen free Tube
    SA317S TO-263-3L SA317S Halogen free Tube
    SA317STR TO-263-3L SA317S Halogen free Tape & Reel
    SA317H SOT-223-3L SA317H Halogen free Tube
    SA317HTR SOT-223-3L SA317H Halogen free Tape & Reel

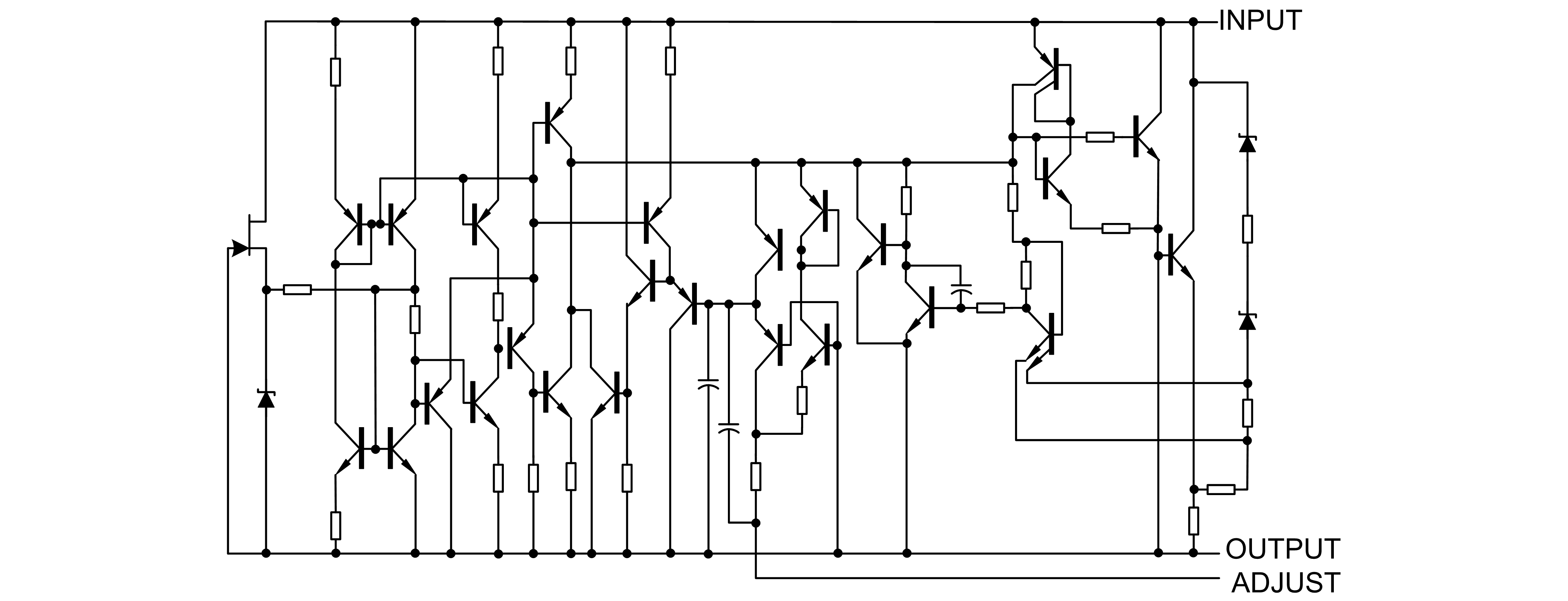

    Block Diagram


    Documents
    title Types of Size (KB) date Download the latest English version
    SA317 0 1970-01-01 SA317 Datasheet
